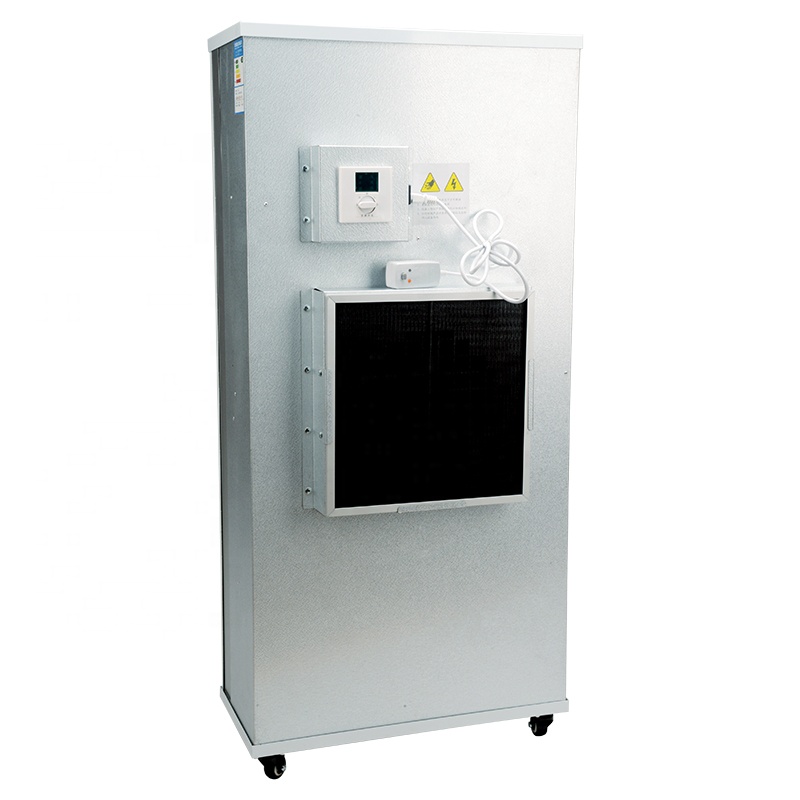

New Type Laminar Air Flow FFU Clean Room FFU Fan Filter Unit

The flexibility of the cleaning system is very important for IC factories because of its high flexibility and high coverage rate. If the cleanliness in the workshop needs regional adjustment as the process changes, the cleanliness in local areas can be changed by changing the FFU air volume or replacing the blind plate. When densely covered, the coverage rate can reach 85.5%.

The upper ceiling of the FFU is negative pressure, which can play a negative pressure sealing role. The air pressure in the ceiling is negative pressure, and the air pressure in the cleanliness is greater than the pressure in the ceiling space. If there is a gap between the FFU and the bracket seal, the negative pressure will prevent the air not passing through the HEPA filter from entering the room, which is conducive to ensuring the cleanliness of the clean room.

The resistance of the air system is small, the wind speed at the air outlet is low, and the windward area of the FFU is large, and the air flow resistance is about 50Pa; The sectional area of the return air duct is also large, and the resistance of the return air duct is within 15Pa; The resistance of perforated floor and grille is small. The total resistance of return air (including perforated floor and grille air duct), FFU resistance and final filter resistance is less than 250Pa. The FFU outlet wind speed is generally 0.38~0.45m/s.

Low energy consumption per unit air volume After FFU is adopted, there is no need to add a booster fan and a special machine room, and the resistance of the air supply pipeline is avoided. When DC/EC (electronic rectifier) motor is adopted for FFU, the efficiency of motor can reach 75%~80%, and each set can conduct speed regulation control according to filter voltage drop to save energy consumption. Therefore, the energy consumption per unit air volume is generally lower than the centralized system of large centrifugal fans.

Dongguan Amber Purification Engineering Limited founded in 2008. As a leading company who provider of one-stop solutions for modular clean room. With over 16 years of experience in the clean room industry, we offer turnkey solutions for projects in diverse sectors such as hospital operating rooms, ICU, pharmaceutical facility, bio-lab, and so on. Our team of more than 20 skilled engineers brings extensive knowledge to all projects, from design and manufacturing to installation and after-sales service. Working from a 10,000+ square meter workshop, we produce a wide range of high-quality products, including modular operating room wall and ceiling panel, clean room door, air shower, fan filter units (FFU), pass box, surgical table, and medical washing sink.

From manufacturing to installation, Amber takes every step possible to ensure a high-quality service, earning respect and recognition from customers all over the world. As an example, we install parts in preset positions to ensure a high work efficiency. Our customers come from around the world, including America, Malaysia, Sri Lanka, Indonesia, Tanzania, Bangladesh, Uzbekistan and so on. They have been extremely pleased with our high-quality products and premium services, and we sincerely encourage new and prospective customers to contact us for any information, or for any problems concerning a modular clean room project. We are glad to work together with you and finally bring you the satisfied products.
