Fast Installed Hospital OT Room Modular Operating Theatre Room
Operation room classification
(1) Class I operating room: the sterile clean operating room, which
mainly accepts operations such as brain, heart, and organ
transplants.(2) Class II operating room: the sterile operating room, which
mainly accepts aseptic operations such as splenectomy,
open reduction of closed fractures, intraocular surgery, and
thyroidectomy.
(3) Class III operating room: that is, the operating room with
bacteria, which accepts operations on stomach, gallbladder, liver,
appendix, kidney, lung and other parts.
(4) Category IV operating room: the infection operating room, which
mainly accepts surgery for appendix perforation, peritonitis,
tuberculous abscess, abscess incision and drainage.
(5) Category V operating room: the special infection operating
room, which mainly accepts the operation of Pseudomonas aeruginosa,
gangrene bacillus, tetanus and other infections. According to
different specialties, the operating rooms can be divided into
general surgery, orthopedics, obstetrics and gynecology, brain
surgery, cardiothoracic surgery, urology, burns, and ENT surgery.
| Cleanliness | Available from class 100 to class 10000 |
| Design Scope | 1. Structure: Wall Panel, Ceiling filtering system, Windows, Doors,
Various Fittings, Flooring |
| 2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc. |
| 3. Electric: Lighting, Switch, Cables, Wires, Power Distribution
Cabinet, etc |
| 4. Auto-control: PLC Controller, Sensors for Humidity and
Temperature, Control Pane |
| 5. Medical Gas System: Medical gas terminal, medical gas pipeline |
| Temperature | 21-27℃ (or as per required) |
| Humidity | 30-60℃ (or as per required) |
| Application | Operation Theatre, Medical Center, ICU, etc. |
Operation room panel advantage
We adopt new type of laminated board, which we get patent in China,
compared with old spraying board
material,the laminated board with advantage of,

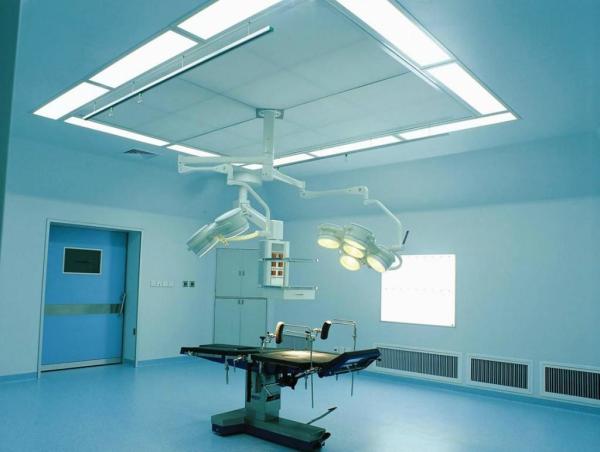

Specification for OT room
operating theater includes:
Wall panel of the OT
Laminar air-flow ceiling
OT room airtight automatic sliding door
Operating table
Headwall (can connect to medical gas system)
Surgical light
Surgical pendant
Stainless steel medicine storage cabinet, medical instrument
cabinet and anesthetist cabinet
OT room control system
LED lamp
Socket box
X-ray view box
PVC filmed steel wall panel
1. Anti-scratch
2. dust-proof and Antibacterial
3. quick assemble and movable
4. easy to clean
5. no fingerprint
6. Long work life, no color fade
7. Easy to install
Laminar flow ceiling
1. Material: Electrolytic plate, cold plate spray, stainless steel
production.
2. Size: according to cleanliness request.100-10000 class.
3. Technics: Paint electrolytic steel plate,Polymer coated
electrolytic steel plate.
4. High efficiency filter: include H14
Medical cabinet
1. Material : Stainless steel SUS304
2. Include 3 cabinet : Medicine Cabinet,
Medical Instrument Cabinet, Medical Anesthesia Cabinet.
3. Size : 900*1700*350 or customized
4. Surface treatment : anti-static
Control panel
Function as below :
1. Turn ON or OFF the system power
2. Main Interface.
3. Air conditioning system.
4. System parameter setting interface.
5. Background music / MP3 interface.
6. Telephone interface.
7. Easy dial interface.
8. Medical gas interface.
9. Centralized control screen.
Project Case
FAQ
Are you a producer or trader?
We’re professional producer, which integrates designing,
manufacturing, sales and installation
service. Our factory is located at Dongguan city of China, traffic
conditions are very convenient here.
You're welcome to visit our company.
Do you offer customize service?
Yes, we accept custom orders. The custom content includes: graphic,
logo, size, material, colors, shape, appearance.
What’s your product quality?
we have 15 years of experience focusing on doors, window,operation
room,clean room project etc, passed ISO9001
certification
How to guarantee the safety during shipping?
1, we pay high attention to packing material & details, provide
protection with extra foam and hard cartons, fragile articles will
be clearly identified.
2, loading containers with professional workers, heavy & stable
items are always below of light goods, ensure no shake and not
leaning.
3. Advice for insurance. For FOB term buyers, we advice reasonable
marine insurance; for CIF customers, we'll buy all risks to protect
your rights.
