    Cargo Stainless Steel Air Shower Cabinet for Pharmaceutical Clean Room

    Ask Lasest Price
    Brand Name : Amber
    Model Number : AM-AS015
    Certification : ISO,CE
    Price : USD900 per set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 1000 set per month
    • Product Details
    • Company Profile

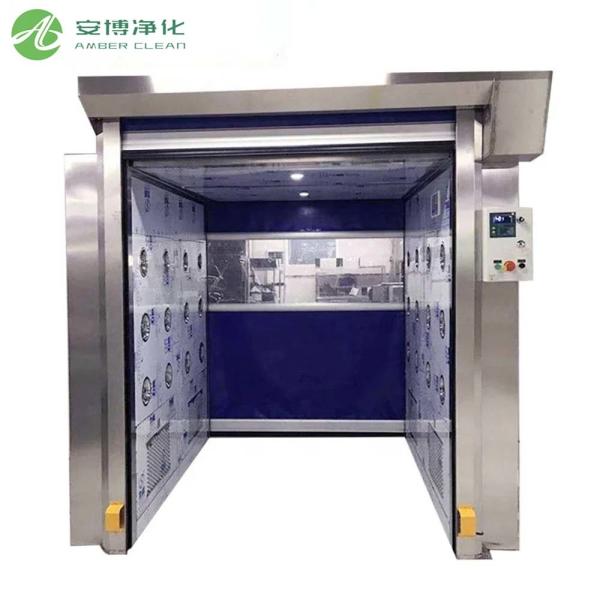

    Cargo Stainless Steel Air Shower Cabinet for Pharmaceutical Clean Room


    Cargo Stainless Steel Air Shower Cabinet is a kind of air shower equipment installed at the logistics entrance of pharmaceutical, electronic, food and other clean rooms, specially used for dust removal on the surface of goods before they enter or leave the clean area. Through the built-in strong wind high-speed blowing shower, effectively remove the dust and particles attached to the surface of the goods, to avoid the outside pollutants into the clean room interior, to maintain a high standard of cleanliness in the workshop.


    Commonalities and Differences between Cargo Air Shower Room and Person Air Shower Room


    Common Points


    Whether it is Cargo Air Shower Room or Person Air Shower Room, the core function is to blow away the dust on the surface of the goods or personnel entering or leaving the clean room through the high-speed airflow inside the Air Shower Cabinet, blocking the source of contamination and ensuring that the clean environment is not damaged. Both of them adopt double-door interlock design, the other door can not be opened before the door is closed, effectively preventing the cross-circulation of air.


    Differences


    ProjectCargo Air Shower RoomPerson Air Shower Room
    Blowout objectsGoods, lorries, palletsPeople

    Structural Dimensions

    Larger for cargo sizes and transport aislesRelatively small for single or multi-person aisles

    Wind speed and air outlet layout

    Customised blowing angles for stacked goodsAir outlets are arranged according to the height of the human body.

    Application Scenario

    Pharmaceutical logistics, electronics and semiconductors, food clean roomsLaboratories, clean rooms, pharmaceutical production rooms

    If your cleanroom involves frequent entry and exit of bulky goods, it is recommended to install Cargo Stainless Steel Air Shower Cabinet in the logistics corridor and Person Air Shower Room in the personnel corridor, combined with Air in Shower System, to realise all-around clean management and to improve overall cleanroom operation standard.


    Specifications

    ModelHLS-2000-2HLS-3000-3
    Outer size mm2000*2000*22802800*3000*2280
    Inner size mm1500*2000*19802300*3000*1980
    HEPA filter size610*610*100*4610*610*100*6
    Filtering efficiency99.99%@0.3μm
    Motor power1.1KW*41.1KW*6
    No. of nozzle
    2436
    Air speed(m/s)
    ≥20m/s
    Noise<65dB
    VoltageAC 380V/50HZ

    FAQ


    Q1: How long does the goods need to stay before entering?

    A: Usually the blowing time is set to 15-30 seconds, which can be adjusted according to the cleanliness level of the workshop and the requirements of Air Shower Clean Room Design.


    Q2: Is stainless steel easy to rust?

    A: The equipment is made of SUS304 or 316 stainless steel, which is corrosion-resistant and rust-proof.


    Q3: Does it support customised size and air speed?

    A:Support, equipment size, air speed, the number of air outlets and layout can be customised according to the customer's clean room design scheme, perfectly matching different Air Shower Clean Room Design needs.
